OFFSET DRIVESHAFTDF70A in višje |
OPIS
The engine powerhead is positioned closer to the front, moving the outboard’s center of gravity forward.
PREDNOSTI
- Less vibration
- More compact
- Stable steering performance
 |
VVT (VARIABLE VALVE TIMING)DF150A, DF150AP, DF175A, DF175AP, DF200A, DF200AP, DF250, DF250AP, DF300AP, DF350A |
OPIS
The Variable Valve Timing is used to control the open and close timing on the intake valve depending on the engine operation.
PREDNOSTI
- Offers smooth, powerful torque.
- Provides tremendous acceleration during operation for all speed ranges.
 |
DIRECT AIR INTAKEDF25/30A, DF350A |
OPIS
Designing a direct airflow path from the intake port to the cylinder suppresses any increase in the intake temperature and improves combustion efficiency.
PREDNOSTI
- Delivers higher power output from a small displacement with improved combustion efficiency.
 |
HIGH ENERGY ROTATIONDF60AV, DF50AV |
OPIS
These outboards are equipped with gears designed with a 2.42 gear ratio, which is larger than the standard model, in their lower units.
When combined with a large 14-inch (36cm) propeller, the powerful system can deliver an explosive forward thrust.
PREDNOSTI
- Powerful navigation and precise maneuvering even with big loads.
- Tremendous power to turn large diameter propellers, offering quick acceleration.
 |
MULTI-STAGE INDUCTIONDF150, DF150AP, DF175, DF175AP, DF200A, DF200AP, DF225, DF250 |
OPIS
Manifold pipes are switched between short and long ones during low speed and high speed operation to ensure the right volume of air enters the engine.
PREDNOSTI
- Increases output during high speed operation with greater volume of air input.
- Increases combustion efficiency and maximizes torque by increasing the density in the air intake during low speed operation.
 |

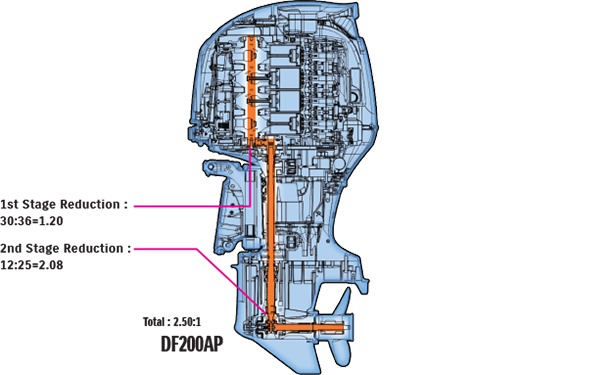

2-STAGE GEAR REDUCTIONDF70A AND UP |
OPIS
This system which incorporates the Offset Driveshaft features a first stage reduction between the crankshaft and drive shaft, and a second stage reduction inside the gear case. This design makes a larger gear ratio possible, allowing it to turn a large diameter propeller.
PREDNOSTI
- High propulsive efficiency with large diameter propeller.
- Powerful navigation, maintaining propeller rotation even with a larger load.
- Tremendous power to turn large diameter propellers, offering quick acceleration.
